Spectra 1964

STX 600 Complimiter Microphone Preamp

  • Sale
  • Regular price ₱68,750.00


Design:

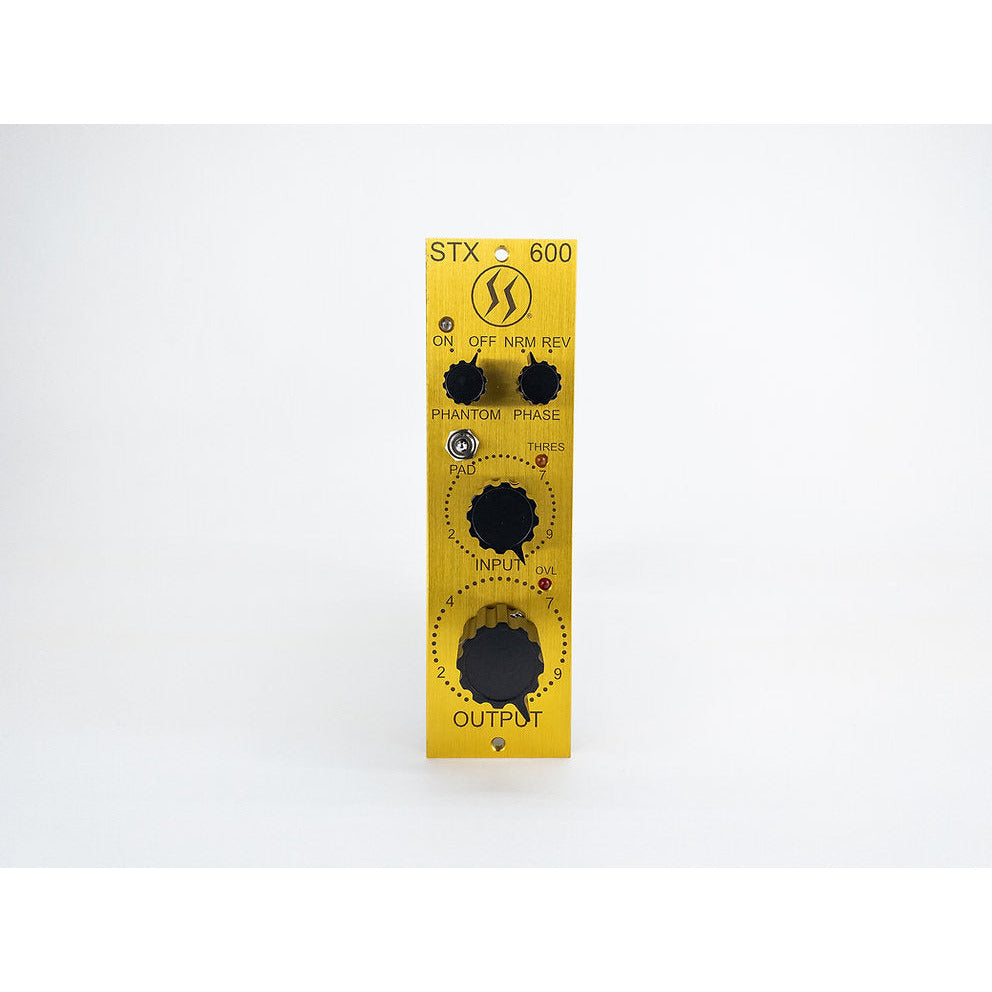

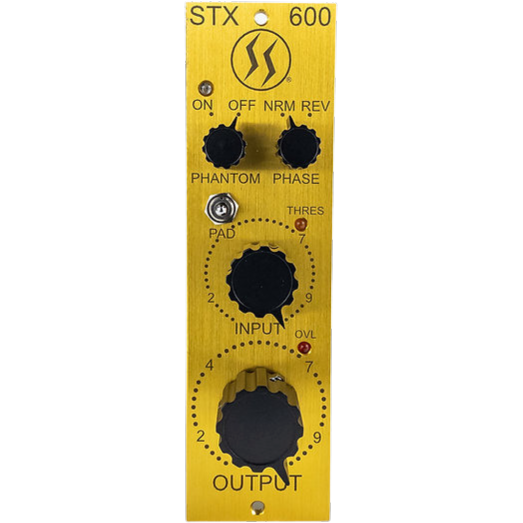

The design of the STX 600 uses the same input section as the C610 and V610 Complimiters. The input section, (top knob), allows for quick setup for use as a limiter, limiter/compressor, or mild to moderate compression, (10:1). The output section, (bottom knob), allows for gain control for both compression compensation, and or microphone level adjustment. Switchable phase and phantom power are easily accessed via top mounted switches. The input pad allows for three settings, (0dB, -10dB, -20dB).

To allow for fast and accurate setup, the STX 600 utilizes two completely different indicator circuits. The input section utilizes an ultra-fast threshold circuit that indicates sub-microsecond peaks, yet allows visual representation of the onset of compression, via consistent lamp illumination. The output section indicator provides visual representation of actual output signal clipping, (+18dBu). The STX 600 is a high-quality product manufactured in the US by Spectra 1964 at our Ogden facility. (Over 95% of the sourced components within all Spectra1964 originate from the US or European suppliers).



Specifications:

  • INPUT IMPEDANCE: 1200 Ohms

  • OUTPUT LOADING: 600 Ohms to Infinity

  • MAXIMUM GAIN: 62dB

  • INPUT LEVEL: TYPICALLY -50dBu to +10dBu

  • MAXIMUM OUTPUT:+18dBm @ 600 Ohms

  • THRESHOLD ATTACK LEVEL: -40dBu

  • SIGNAL-TO-NOISE: -80dBu, Below +4dBu Output,-40dBu Input 20Hz-20kHz, Unweighted

  • FREQUENCY RESPONSE: +/- 2dB, 20Hz-20kHz

  • LIMITER ATTACK TIME: Less than 90 Nanoseconds

  • COMPRESSOR ATTACK TIME: 100 Nanoseconds to 1.2 Milliseconds

  • TOTAL HARMONIC DISTORTION: .03%, 30Hz-20kHz, @ +8dBu

  • POWER SUPPLY REQUIREMENT: Less than 80 Milliamps @ +18dBu
