Patch LT

The PATCH LT System was designed with the up & coming producer or budget studio in mind. Using the same Flock Audio Patented Matrix Technology as our Flagship Model "PATCH", LT allows any producer or studio to add the worlds most advanced digitally controlled, analog routing system into their studio or post production suite without compromise.

In the Box:

• PATCH - (1U Hardware Rack Unit) Dimensions: 19" (W) x 1.75" (H) x 8" (D)
• USB 2.0 - (10 ft) Host Control Cable (USB-A to USB-B)
• Power Supply - 24VDC (110V or 220V) Power Supply
• Power IEC Cable - (Shipped with IEC Plug based upon customer region)
• 6 Step Quick Start Setup Guide
• Hardware Index Setup Template

Details:

• Computer Connectivity: USB 2.0
• Compatibility: OSX 10.7 Lion & Newer / Windows 7 & Newer

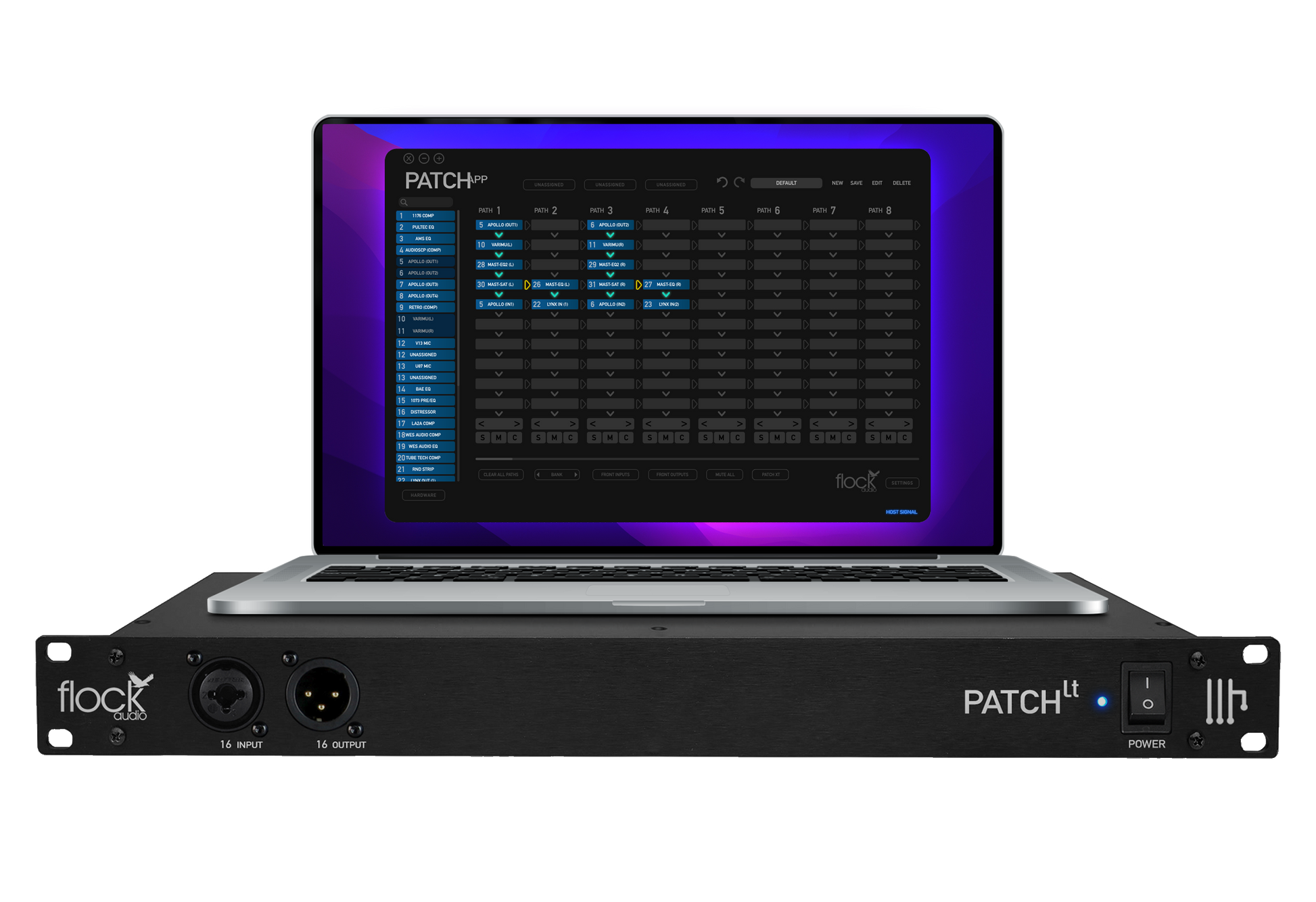

• Software: PATCH APP (Online Download)
• Chassis: 1U Rackmount (8" Deep)
• Patch Point Connections: 32 Total - 16 Inputs / 16 Outputs (Expandable with all PATCH Models)
• 48v Phantom Power: 16 Channels Independently Controllable

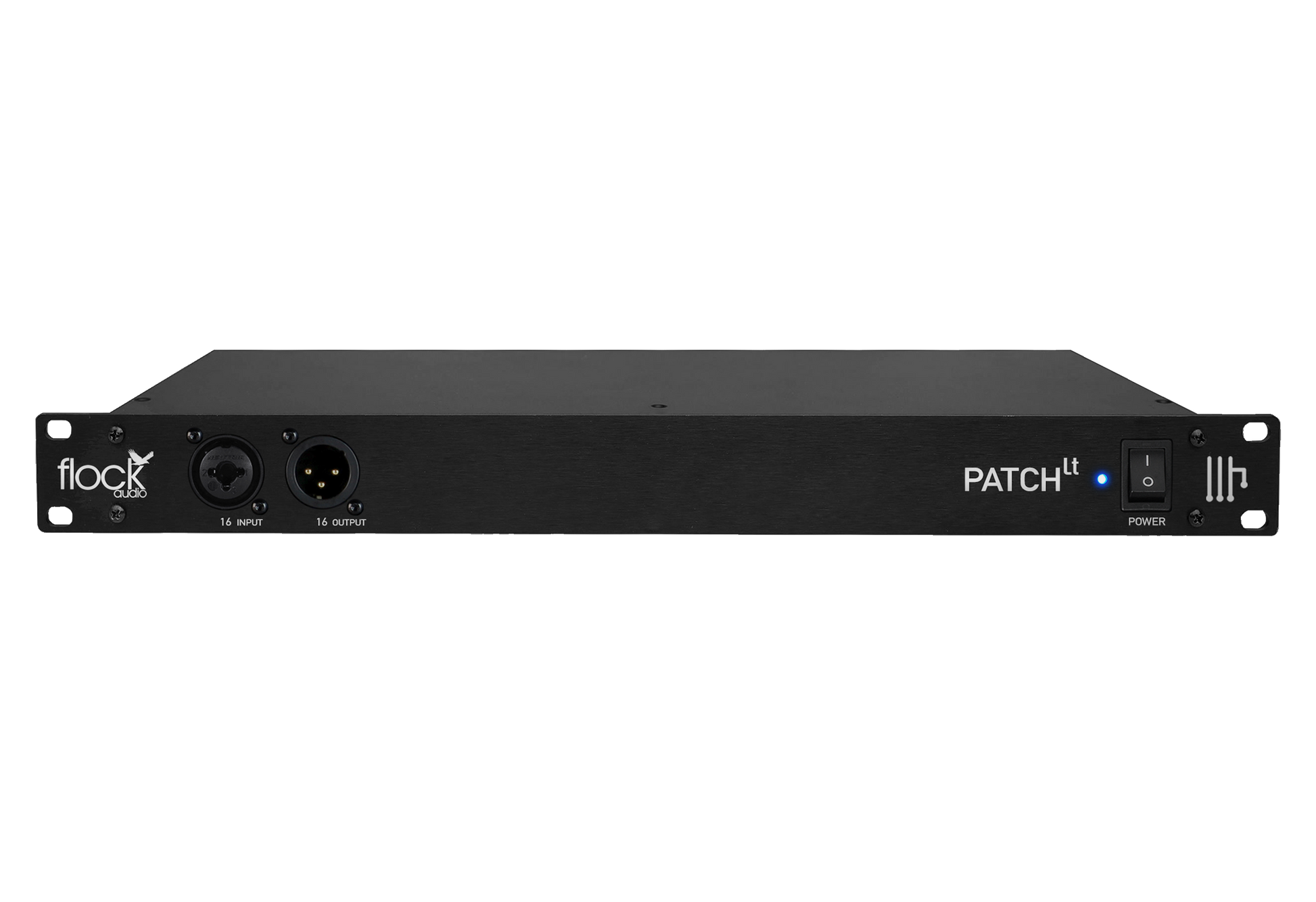

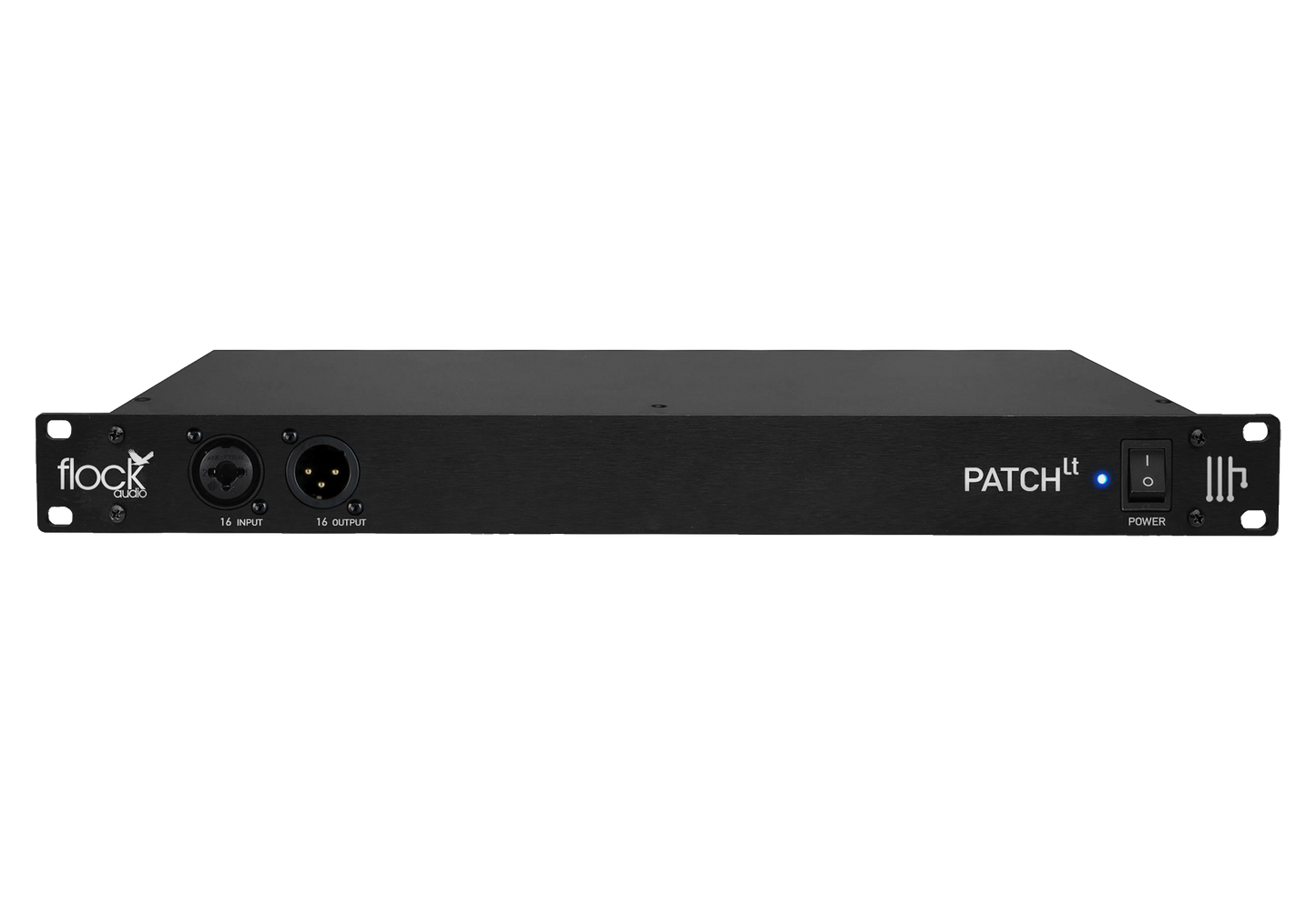

• Front Connectors: 1x Combo TRS/XLR Inputs & 1x XLR Outputs
• D/A or A/D Conversion: No AD/DA Conversion, 100% Analog, Sonically Transparent Audio Path
• Routing System: Patended Flock Audio Matrix Technology

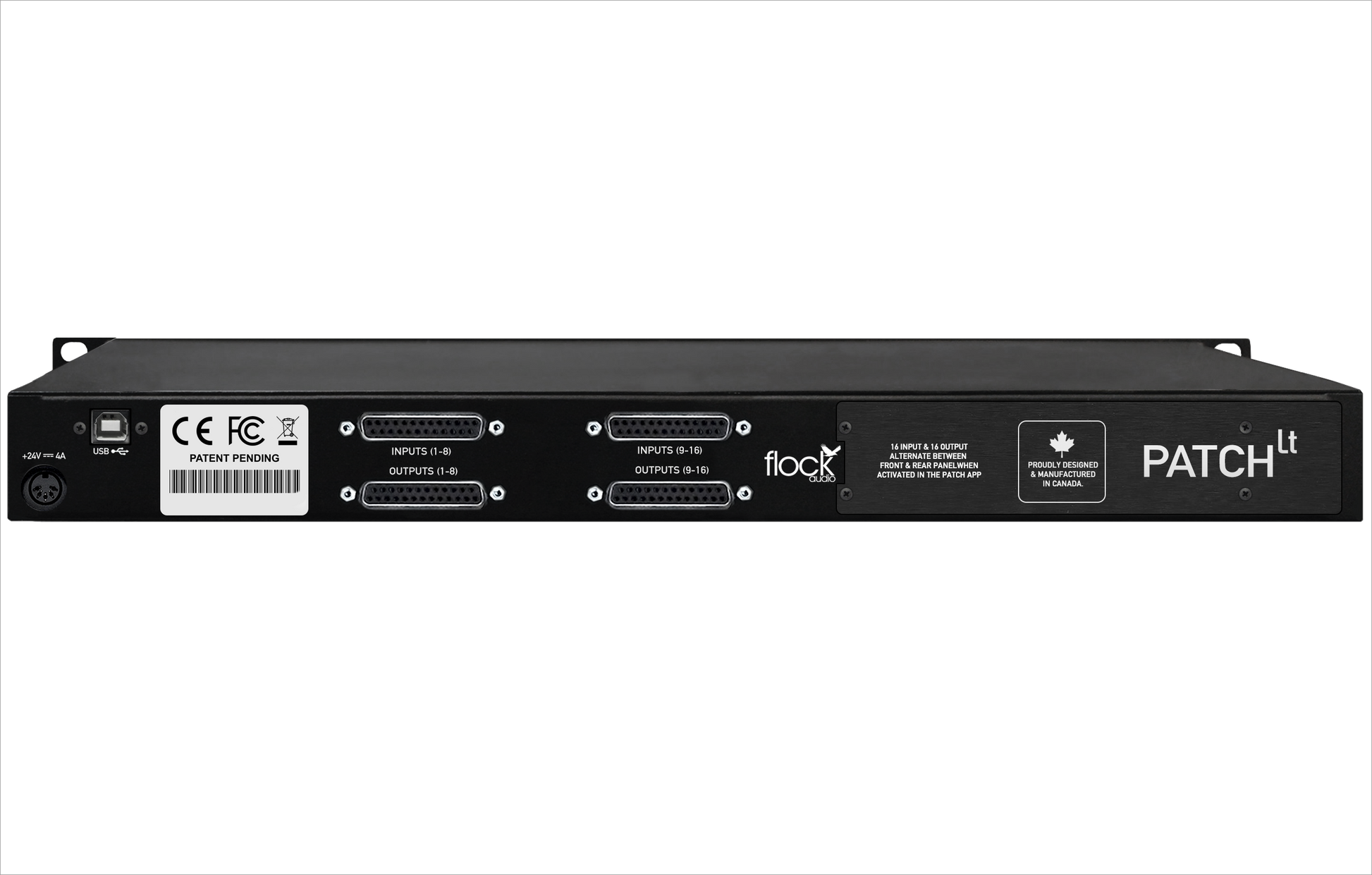

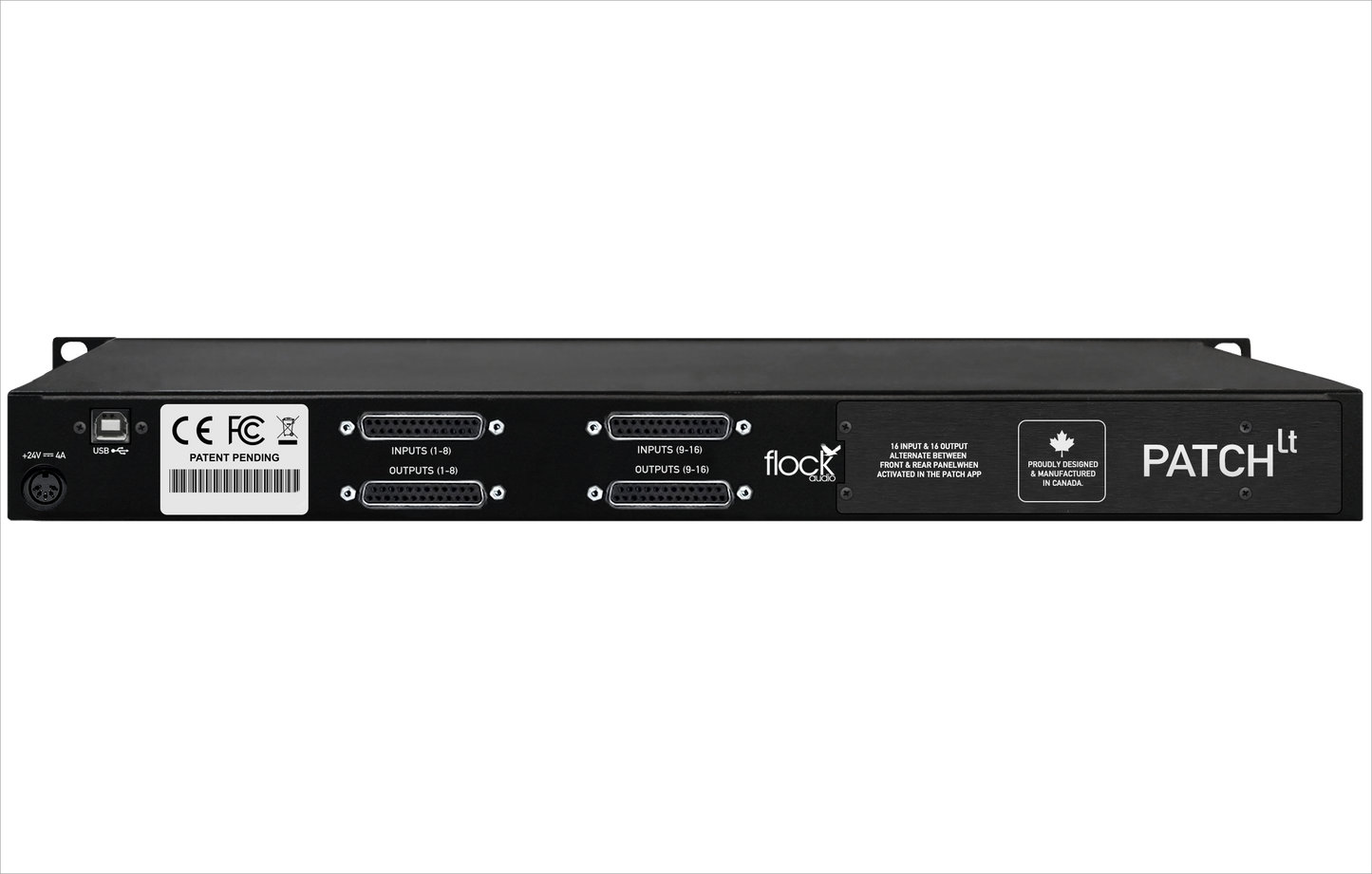

• Analog Connections: DB-25/D-SUB Female Connectors (Standard Tascam Wiring Pinout)
• Power Supply: External 24 VDC Power Supply w/ 5 Pin Threaded Locking Connector
• Warranty: 1 Year Total System + Included Cables Manufacturers Warranty
