Patch

The PATCH System was released in 2018 and has been used in countless Award Winning studios and post production suites around the world. The PATCH System has quickly made Flock Audio one of the most trusted & highly anticipated brands in the professional audio industry. Built upon our Patented Matrix Technology, The PATCH System allows creative flexibility & enhanced workflows no matter the analog source. Join the hundreds of audio engineers who have switched to the new standard in Analog Audio Routing... The PATCH System.

In the Box:

• PATCH - (1U Hardware Rack Unit) Dimensions: 19" (W) x 1.75" (H) x 8" (D)
• USB 2.0 - (10 ft) Host Control Cable (USB-A to USB-B)
• Power Supply - 24VDC (110V or 220V) Power Supply
• Power IEC Cable - (Shipped with IEC Plug based upon customer region)
• 6 Step Quick Start Setup Guide
• Hardware Index Setup Template

Details:

• Computer Connectivity: USB 2.0
• Compatibility: OSX 10.7 Lion & Newer / Windows 7 & Newer

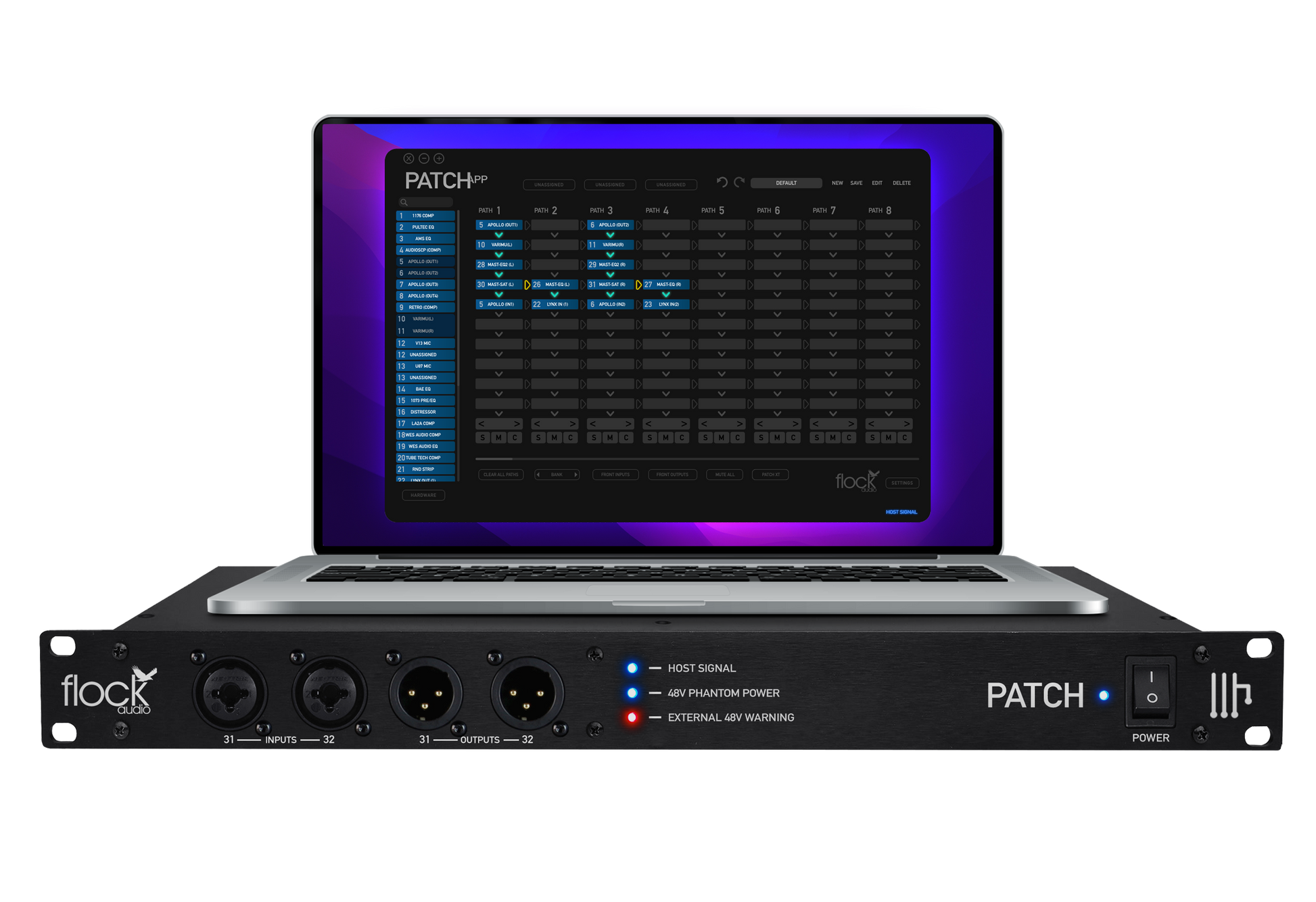

• Software: PATCH APP (Online Download)
• Chassis: 1U Rackmount (8" Deep)
• Patch Point Connections: 64 Total - 32 Inputs / 32 Outputs (Expandable with all PATCH Models)
• 48v Phantom Power: 32 Channels Independently Controllable
• Front Connectors: 2x Combo TRS/XLR Inputs & 2x XLR Outputs
• D/A or A/D Conversion: No AD/DA Conversion, 100% Analog, Sonically Transparent Audio Path
• Routing System: Patended Flock Audio Matrix Technology

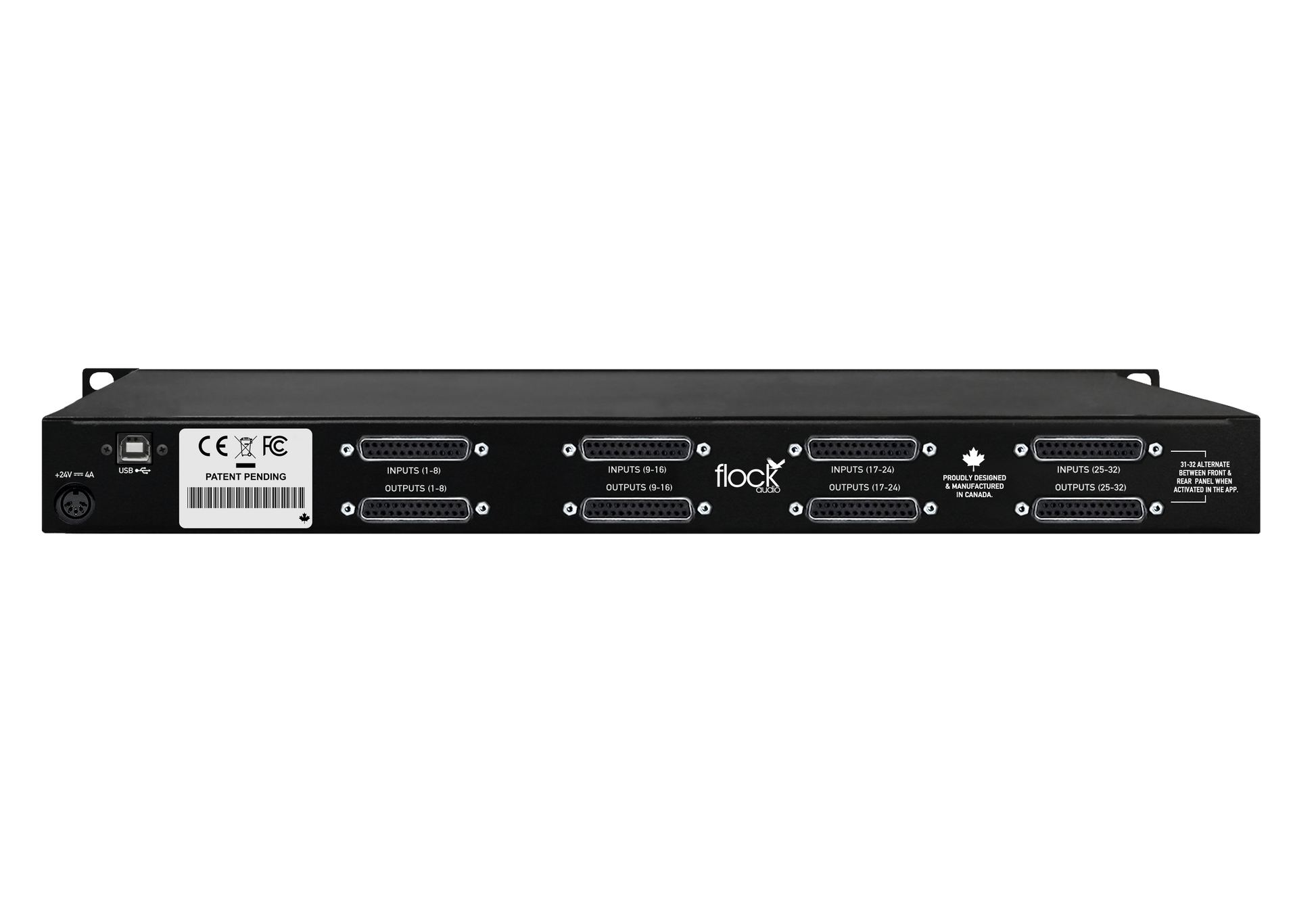

• Analog Connections: DB-25/D-SUB Female Connectors (Standard Tascam Wiring Pinout)
• Power Supply: External 24 VDC Power Supply w/ 5 Pin Threaded Locking Connector
• Warranty: 1 Year Total System + Included Cables Manufacturers Warranty
